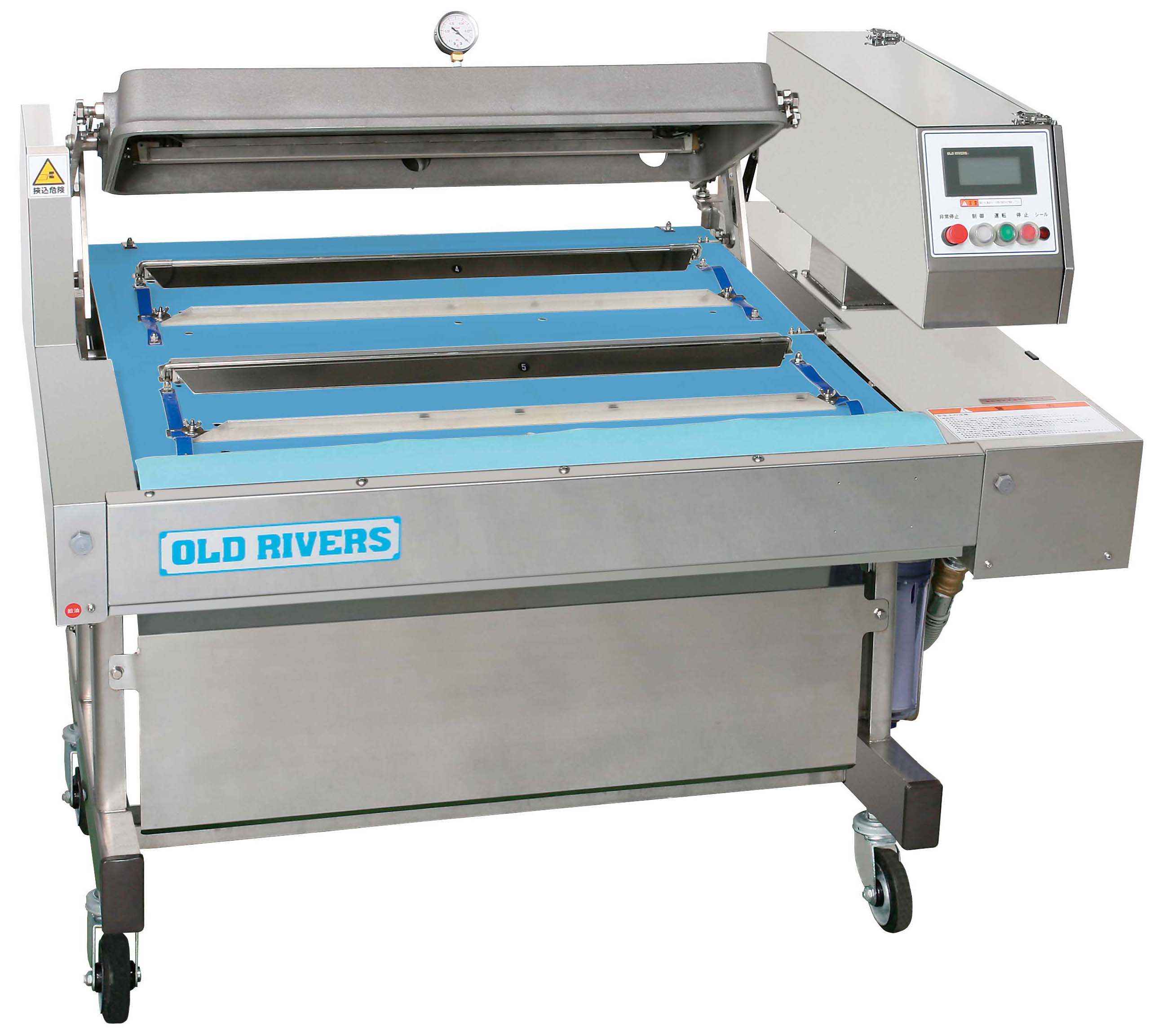

• The built-in vacuum pump makes the machine smaller, making it a portable linked vacuum packaging machine that requires a smaller setup space and is easier to move.
• By installing a single motor drive and a small vacuum pump, electricity and pump oil are reduced, achieving energy saving compared to conventional machines.
• The control box and upper and lower frames are made of stainless steel, and use an antibacterial belt and a one-touch release structure. The inside of the belt (operating table, etc.) and the back of the belt can be cleaned to improve hygiene. (The belt is lightweight and can be cleaned by one person.)
• The operation unit adopts a touch screen. Up to 10 product data can be set (vacuum, sealing, cooling, etc. time). In addition to the forward operation mode (continuous, intermittent), there is also a reverse mode (intermittent only), and the packaged product will return to the operator side.
• The machine angle is adjustable, suitable for packaging products containing liquids. (0°～24°, 4 steps)

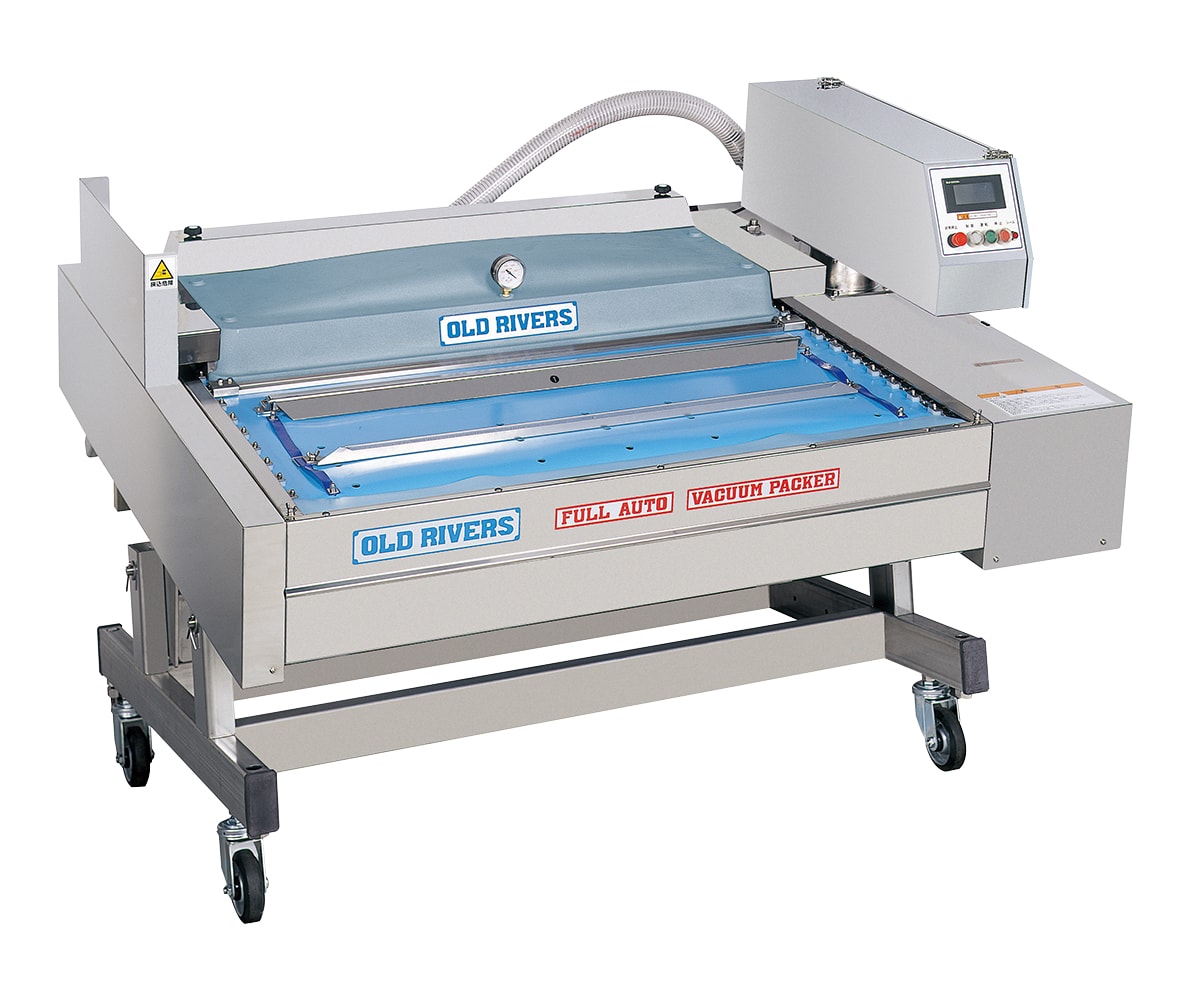

• The control box is installed at the top. Through the use of microcomputer control and high-definition panel, up to 10 products (vacuum, sealing, sealing cooling, etc.) can be set, which is suitable for multi-variety production.
• The heating table is water-cooled and the sealing is pulse-type.
• The vacuum cover can be flipped over to replace the heating wire.
• Use an antimicrobial belt.
• The control box, upper and lower frames are made of stainless steel.
• The machine angle can be adjusted, which is suitable for packaging products containing liquids. (Divided into 5 sections within the range of 0°～24°)

• The machine claws can be adjusted by the handle, suitable for packaging bags with a bag width ranging from 170 to 275mm.
• Once the bag is opened, the tongue depressor can prevent the bag from closing.
• Free choice of hopper, liquid filling device and working position.
• Liquid filling device (special) has various models ranging from 100 to 2000cc.
• Shaping can be done in a vacuum chamber. (special)
• The film recycling function can reduce the loss of empty bags. (special)
• The main frame and other parts are made of stainless steel, which is easy to clean and organize.

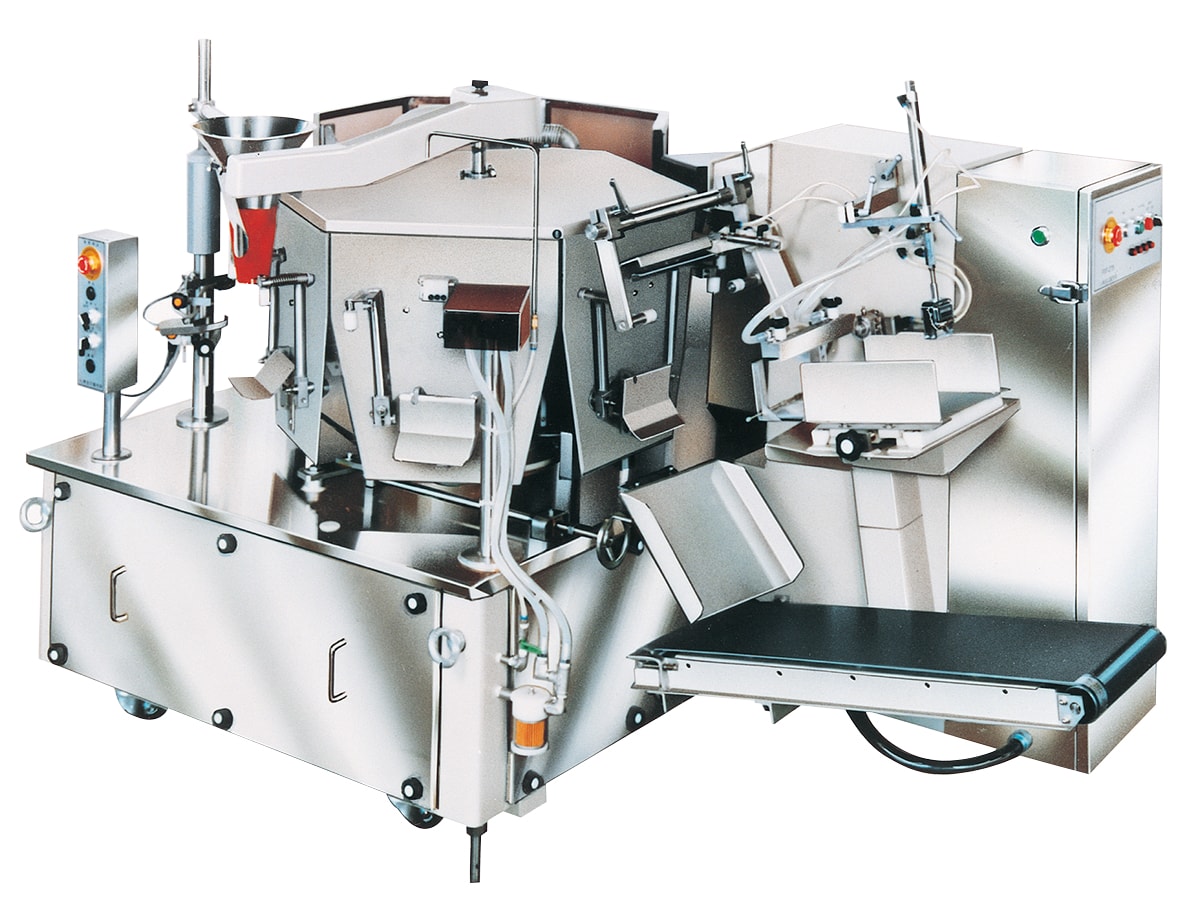

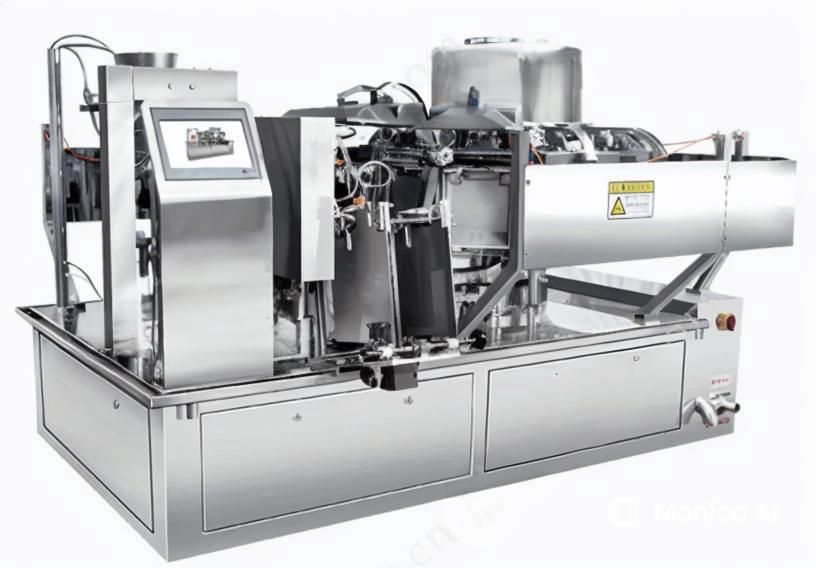

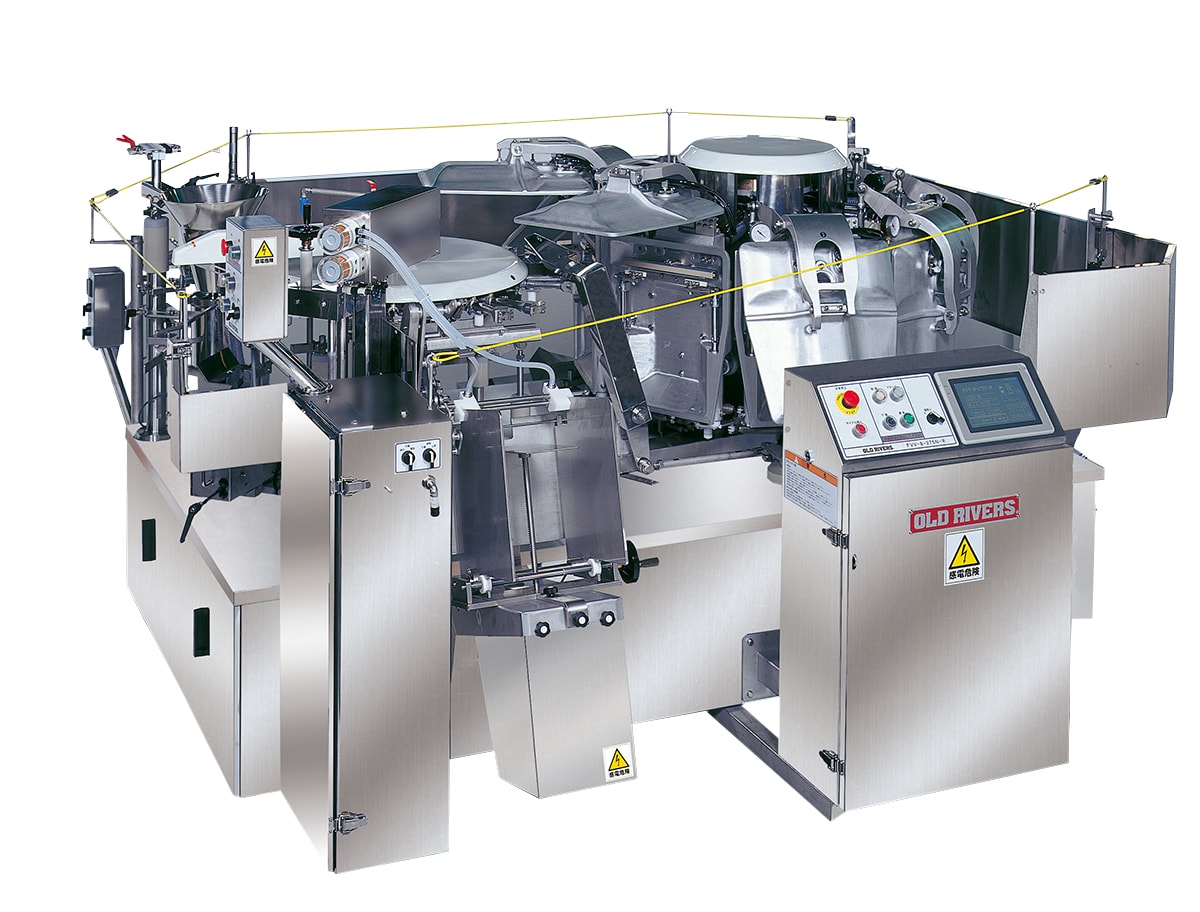

• This machine is a double turntable packaging machine with the bagging section and vacuum section separated. To facilitate product input, the bagging section adopts intermittent motion, while the vacuum section adopts continuous rotation.
• The machine uses a touch screen operation method, and up to 100 types of product information can be set. Machine speed, temperature adjustment, vacuum level and fill volume can be set and changed by simply calling up this item on the display. The touch screen displays the location, cause, and countermeasures of the fault, and a self-diagnosis function is available. Various monitoring functions such as preset counters and maintenance time notifications are also available by installing counters. Displays vacuum degree and temperature, and by upgrading the system, it can support a management system that complies with HACCP.
• Bag recycling function is standard on this machine to reduce waste of empty bags.
• Can be linked with automatic metering machine and feeding machine.

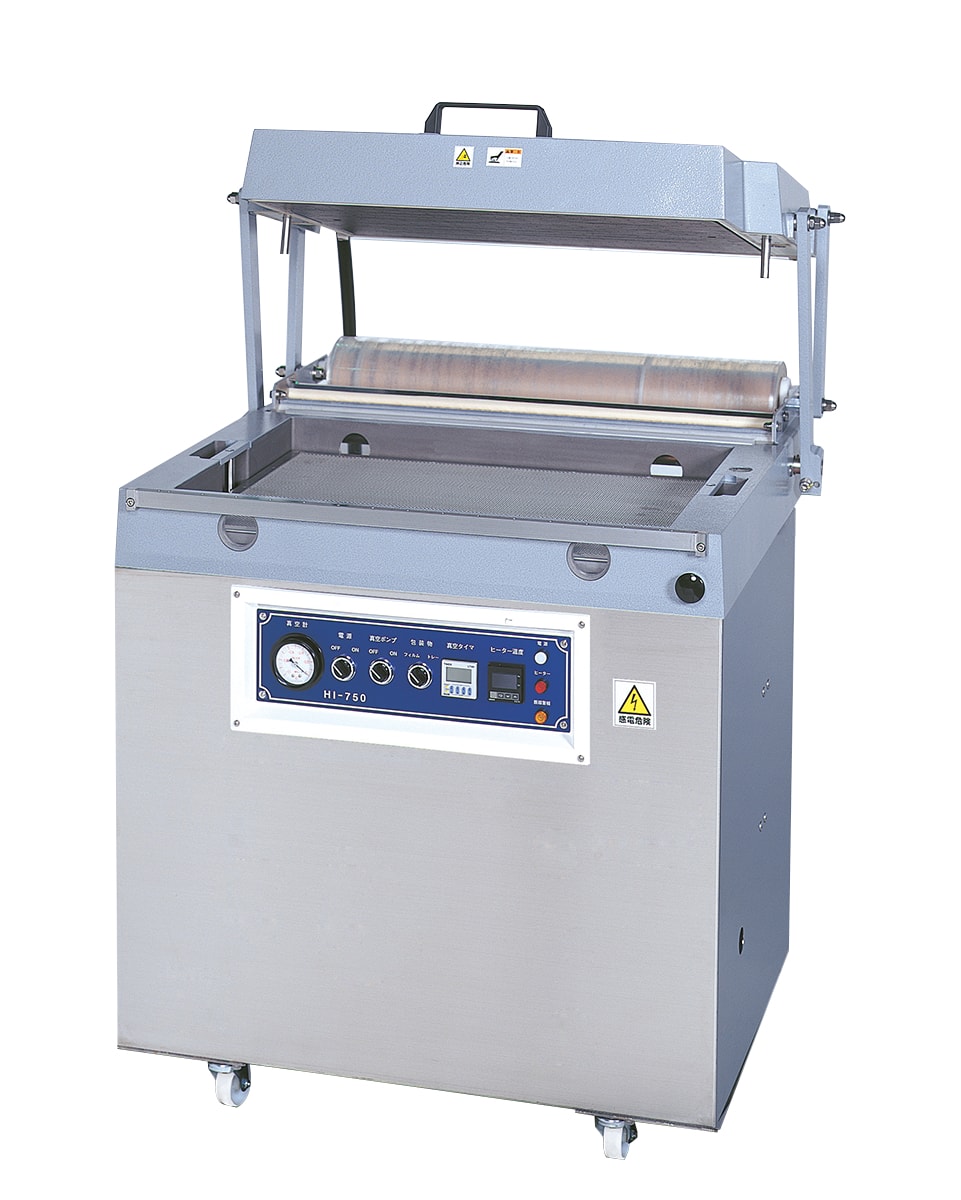

• The product (tray, mold) is covered with a film. After the film is heated and softened, it can be directly adhered to the product (tray, mold). This machine can save bagging time. Because the film fits tightly to the product, the wrapped product will not frost and will be prevented from drying out compared to stretch wrapping.
• Since the upper film and the lower film (tray and mold) are attached to each other, liquid is not easy to flow out and the diffusion of liquid can be prevented.
• Frozen food can be packaged directly in the frozen state.
• Since the film adheres gently to the product, even softer products can be packaged directly without destroying their shape.
