Machine Model

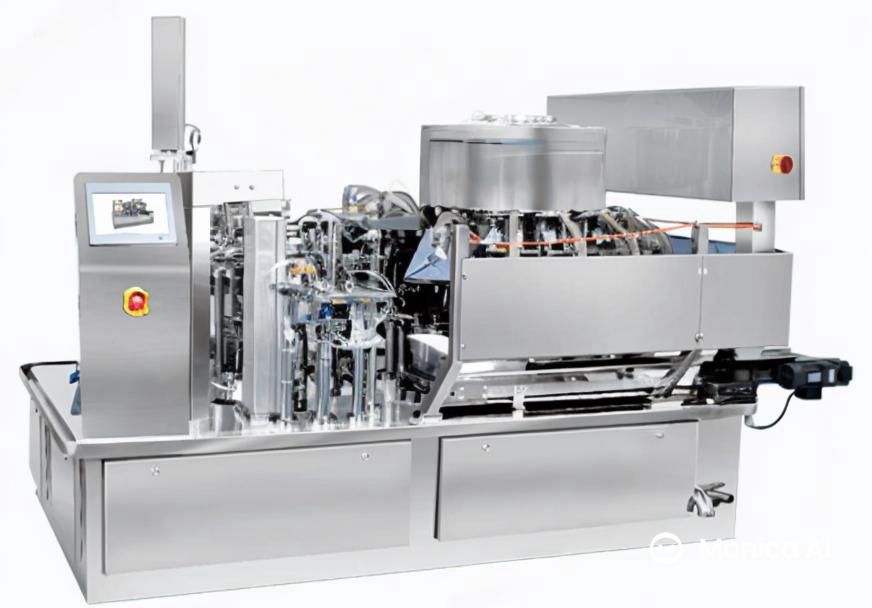

BTM-10-16-1018
Work Process
①bag feeding ②code printing（optional）③open the bag ④material feeding ⑤material feeding ⑥material feeding ⑦material feeding ⑧bag pulling ⑨passing to vacuum chambers ⑩close the lid ⑪vacuumize ⑫seal ⑬seal&cool ⑭deflate ⑮bag out
Equipment Material
304 stainless steel
Vacuum Pump
BUSCH（German）/ ZD（Shanghai）（optional）
Pneumatic Components
SMC（Japan）/ FESTO（German）（optional)、Airtac（Taiwan）（non-standard parts)
Driving Mode
Mechanical drive（cam gear lever full mechanical mode）
Heat Sealing
Instant heat sealing and instant cooling, ensure nice sealing appearance
Packing Speed
110 - 120 bag/min（depending on ingredients）
Pouch Type
3-side sealing bag, Aluminum foil bag, Nylon bag, Compound bag, paper bag, etc
Pouch Dimension
W：50 - 100mm L：60 - 180mm
Air Consumption
≥0.8m³/min
Drive Power
3-phase 5-wire system 380V 50HZ
Dimension
2850 x 1600 x 1600mm（L x W x H）（without elevator）
Cooling water
15-20℃, 3 liters/min
Use Of The Environment
Room temperature 10-40℃, 30-90% RH, No Condensation, No Corrosive gas, No dust and other harsh environment.
※The capabilities may vary depending on the product and the vacuum pump.
