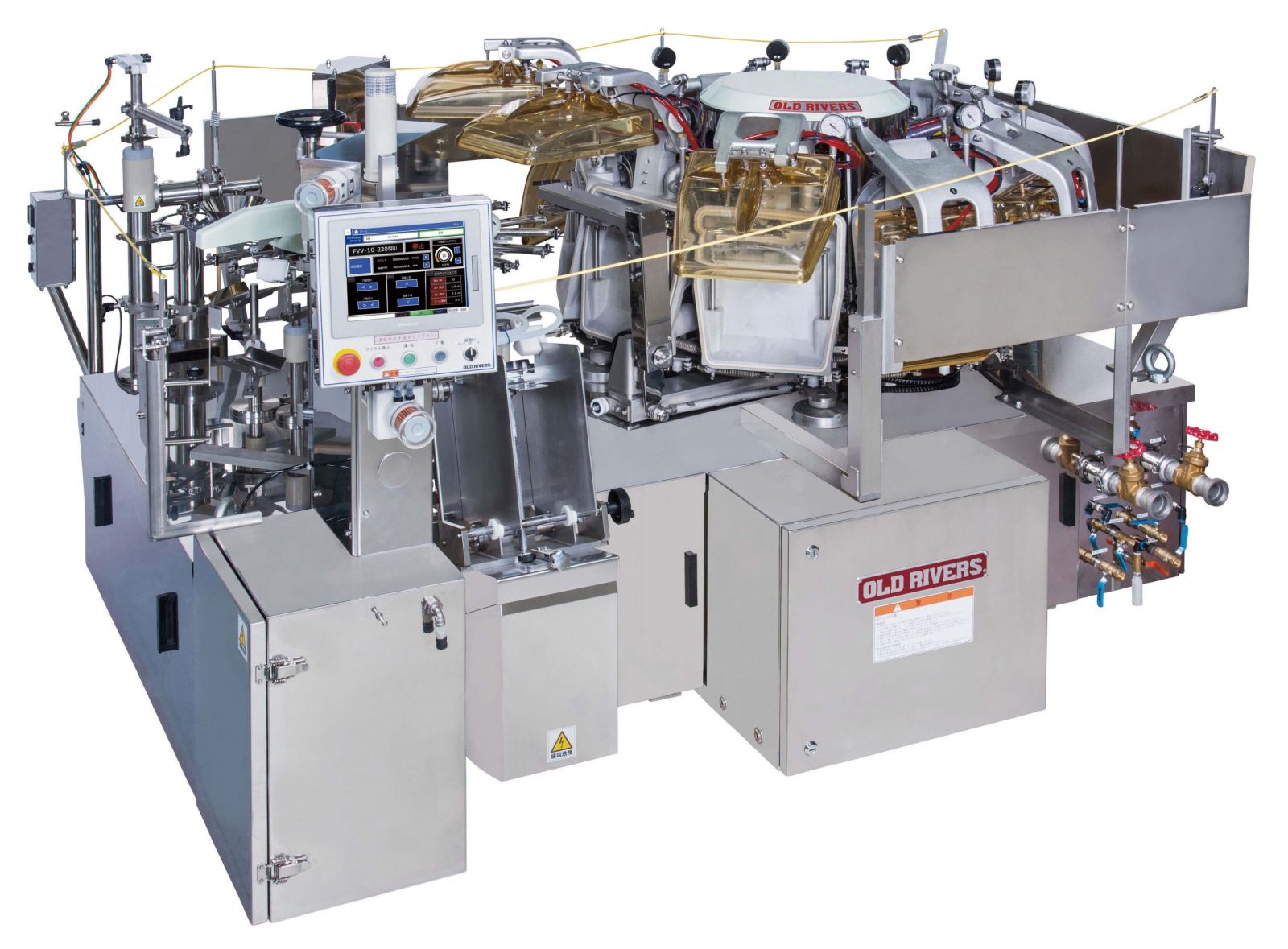

• This machine is a double turntable packaging machine with the bagging section and vacuum section separated. To facilitate product input, the bagging section adopts intermittent motion, while the vacuum section adopts continuous rotation.
• The machine uses a touch screen operation method, and up to 100 types of product information can be set. Machine speed, temperature adjustment, vacuum level and fill volume can be set and changed by simply calling up this item on the display. The touch screen displays the location, cause, and countermeasures of the fault, and a self-diagnosis function is available. Various monitoring functions such as preset counters and maintenance time notifications are also available by installing counters. Displays vacuum degree and temperature, and by upgrading the system, it can support a management system that complies with HACCP.
• Bag recycling function is standard on this machine to reduce waste of empty bags.
• Can be linked with automatic metering machine and feeding machine.
• Oil can be supplied to various oil supply points through centralized pipelines. (Oil supply except for some other places)
• The bagging section (jaw width) can be adjusted by setting a switch, and usually no adjustment is required inside the vacuum chamber.
• The vacuum chamber can be flushed with water.
• Timing can be adjusted via electronic cam.
• When the heating wire is broken, an alarm will sound and the machine will stop automatically.
• The vacuum box is made of resin, and the internal conditions can be confirmed through the transparent part of the vacuum box.
• The series also adds the counter-rotating type FVV-10-220NIII-L, which can be laid out according to the production line of the customer's factory.
